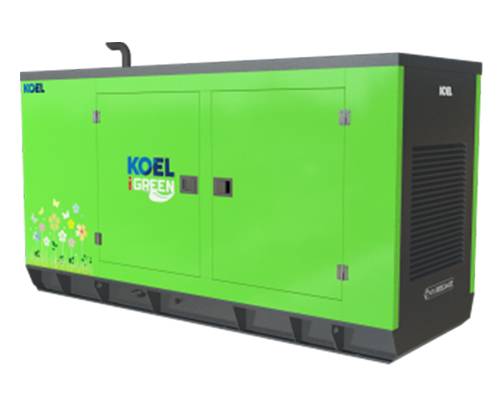

40 kVA – 160* kVA

Features
Low OPEX: Best in class fuel efficiency with O2E technology
Robust and Reliable Product: Lowest maintenance and trouble free product with Kirloskar Engines
Option of Air Cooled and Water Cooled Engines
Compliance: Latest Government Emission Norms CPCB II
Start Type: Controller Based Easy Push Start Type
Customer Service: Quick and affordable door step service coverage (420+ service touch points and 6000+ KOEL trained service professionals on field)
Warranty: 2 years warranty & labour free onsite service under warranty period
View More

Koel iGreen Offerings

  • AMF as standard
  • KOEL remote Monitoring
  • Silencer inside canopy
  • Aesthetically enhanced genset
  • QR Code enabled genset
  • Multi-colour Status indicator

Description

India’s #1 Genset brand04

KOEL Green is the Genset brand of Kirloskar Oil Engines Ltd (KOEL), the flagship company of the century old Kirloskar Group. KOEL Green is India’s largest selling and most trusted Genset brand for over a decade. Providing back-up power solutions from 15 to 5200 kVA for diverse market sectors, “KOEL Green” has over 1 million Gensets in service across the globe.

 High reliability and durability of Gensets

Owing to extreme operating conditions in India, preference has been given to robust configurations, that have been running successfully for several years. Also, KOEL is the only manufacturer which provides you with the benefits of choice in terms of Air cooled and Water Cooled gensets.

Best-in-class Fuel Efficiency10

KOEL Green Gensets offer a unique combination of CPCB norm compliance and enhanced fuel efficiency. Across the range, KOEL Green Gensets offer substan&al savings in fuel cost.

O2E Series (Opmal Operang Efficiency):

Genset ratings are selected based on the present load and future expansion. Fuel efficiency of most Gensets is optimized at the full rating of the Genset.

In practice, Gensets rarely get loaded to full capacity. Power demand varia&tions across day & night, weekdays & weekends.

Summer & winter lead to an average 50-70% loading on the gensets.

Considering this practical situation, KOEL has extended fuel efficiency optimization from 100%, right up to 50% of rated load. Combination of best-in-class fuel efficiency & O2E provides a double advantage.

Genset Controls at your finger- tips11

There is no comfort like being in command. KOEL Green Gensets put the command in your hands. Micro-processor based Genset controllers display a host of Genset parameters and put all controls at your fingertips.

Monitoring Features
  • Lube oil Pressure, Engine Temperature, RPM, lube oil Temperature*
  • Run Hours, No. of starts, Fuel Level, Auto / Manual Stop, BaMery charge condition, AC Phase Voltage, Current, kVA, kW, kWh, kVAr, Power Factor
Optional Features
    • Modbus communica&on*

* Features are available from 15 kVA onwards

Diagnostic Features
  • Ballery charging failure, Over speed, Under speed, Over Current, Under Voltage, Over Voltage, Over kW, Phase Sequence monitoring, Phase missing, Common Alarm, Hooter output
  • Low lube oil Pressure, High Engine Temperature, Low/High battery voltage, Low Fuel Level alarm, Over Crank protection, Routine Maintenance indicator, Genset Test Facility, fail to start/stop

Peace-of-mind Ownership12

KOEL Green Gensets have always been preferred for their robust design and reliability over long usage life.

KOEL Green range carries the confidence of well-established and proven engine platforms. For compliance to revised CPCB norms, KOEL has carefully selected those technologies which not only retain, but enhance Gensets durability and on-site serviceability.

Thus, KOEL Gensets offer you many years of trouble-free performance; backed by the assurance of prompt support. Peace-of-mind driven by product reliability and low cost of ownership.

7-Days assured Delivery09

KOEL Chhota Chilli Gensets comes with a promise of assured delivery within 7 days of confirm order placement. Genset being a high value capital purchase may lead to needless block of capital and hence need not be purchased in advance. It is prudent to order the genset at the right time and plan the deliveries in line with your readiness to use. This will also avoid damages to genset due to lying unattended at site and engine re-validation cost.

Complete Solution with AMFi Panels

KOEL AMFi panels automatically switch on your genset when the mains supply fails and switch off the genset when the mains supply restores giving you un-matched convenience.

Elementary Points to Ponder during selection of a Genset:

131. Prime rating and Stand-by rating ¹

‘Prime power’ is designed for unlimited hours, as compared to ‘Emergency stand-by&’ designed for 200 hours in a year. Prime rated Gensets also permit 10% temporary overloading. Users need to carefully select the Genset rating to meet their requirement. KOEL offers Prime power as a standard offer. *Contact KOEL for stand-by ratings.

142. Engine capacity does matter ²

Engine capacity (cc) plays a vital role in Genset performance. Higher engine capacity leads to a robust and stable Genset performance. Higher engine capacity also enables the Genset to respond quickly & positively to sudden load additions.

7 Easy steps for a happy Genset Ownership :

  • Insist on a load-study
  • Select the Genset ra&ng as per the load-study and with sufficient margin for future load expansion
  • Apply site-selec&on guidelines carefully
  • Insist on installation in line with KG guidelines
  • Ensure adequate size and proper connec&on of cables
  • Understand the Genset opera&on & maintenance procedures during commissioning
  • Follow routine maintenance protocols through authorized KG service dealers

Product Specifications

Prime Rating at rated rpm ( as per ISO8528)1

 kVA 40 40 45 62.5 62.5 82.5 100 125 125HD
kW 32 32 36 50 50 60 80 100 100

Genset Model

   KG1-40AS KG1-40WS KG1-45WS KG1-62.5AS KG1-62.5AS KG1-82.5WS KG1-100WS KG1-125WS KG1-125WS HD

Frequency

 Hz 50 50 50 50 50 50 50 50 50

Power factor

 lagging 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8

Voltage

 V 230 (1Ø) & 415 (3Ø) 415(3Ø)

Governing class (As per ISO 8528 Part-V)

 G2 G2 G2 G2 G2 G2 G3 G3 G3

Noise level

 dBA < 75 < 75 < 75 < 75 < 75 < 75 < 75 < 75 < 75

Fuel Consumption*

 At 100% Load Ltrs/hr 9.9 9.2 10.3 16.2 14.1 18.8 21.9 27.4 27.5
At 75% Load 7.9 7.4 8.7 12.7 11.3 13.8 16.9 20.2 21.4
At 50% Load 5.8 5.5 5.9 8.9 7.5 9.9 12.2 15.3 15.3

Fuel tank capacity

 Ltrs 100 100 100 150 150 230 230 230 50

Weight of genset with canopy (approx..)^

 Dry Kg 1270 1250 1250 1700 1420 1710 2040 2090 2520
Wet Kg 1370 1335 1335 1825 1550 1840 2240 2290 2730

Overall dimensions of genset^

 Length mm 2400 2550 2550 3150 2800 3200 3220 3220 3650
Width mm 1050 1050 1050 1200 1100 1100 1300 1300 1350
Height mm 1670 1450 1450 1635 1595 1595 1795 1795 1915

Electrical Battery starting voltage

 Volts-DC 12 12 12 12 12 12 12 12 12
ENGINE

Engine Model

 HA494TCI G1 3R1040TA G1 3R1040TA G1 HA694TCI G1 4R810TA G1 4R810TA G1 4K1080TA G2 4K1080TA G2 6R1080TA G1

Rated output (Prime Continuous rating as per ISO 8528-1)

 KW 41.19 41.2 41.2 61 61 74.8 114.7 114.7 114.7
HP 56 56 56 83 83 102 156 156 175

No. of cylinder

 Number 4 3 3 6 4 4 4 4 6

Cubic capacity

 Ltrs 3.77 3.12 3.12 5.65 3.24 4.16 4.32 4.32 6.49

Bore x Stroke

 mm 100 x 120 105 x 120 105 x 120 105 x 120 100 x 120 96 x 112 105 x 120 105 x 125 105 x 125

Rated Speed

 RPM 1500 1500 1500 1500 1500 1500 1500 1500 1500

Aspiration

 NA/TC/TA TC TA TA TC TA TA TA TA TC

Lube Oil change period

 Hrs 500 500 500 500 500 500 500 500 500

Lube Oil Sump Capacity

 Ltrs 8.3 8 8 11 10 10 14 14 18

Coolant Capacity

 Ltrs 11.5 11.5 117.5 24 21 21 28

ALTERNATOR

Insulation Class

 Class H

Alternator Efficiency (at 100% load) 0.8 pf**

 % 89.2 89.2 89.2 91 91 91.4 92 92.5 92.5

Max Voltage Dip at Full Load 0.8 pf Lag

 Sec < 20% < 16% < 16% < 20% < 20% < 20% < 20% < 20% < 20%

Max Time to build up rated voltage at Rated RPM

 < 5 sec provided engine reach the rated speed < Voltage recovery time 6 sce
